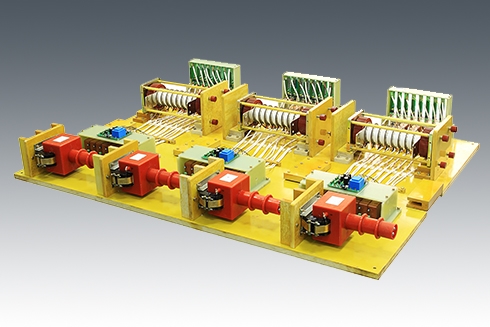

脉冲功率组件

脉冲功率组件(Plused Power Assembly)



型 号
TYPE
元件数量
The Number
of Devices
适用元件
Applicable
Devices
IPK VDRM  VRRM  di/dt能力 dv/dt  触发接口
trigger
interface
频率
Frequency
外形
Outline
tp≤500μs di/dt IPK
kA kV kV A/μs k/A V/μs Hz mm
tPower-SP.KM120C20N 3 MKPC 120 19.5 19.5 3000 120 2000 光纤/
 optical fiber
单脉冲/
 single pulse
250×282×352
tPower-SP.KM120C45N 7 MKPC 120 45.5 45.5 3000 120 2000 光纤/
 optical fiber
单脉冲/
 single pulse
470×383×344
tPower-SP.KM300C45N 7 MKPE 300 45.5 45.5 3000 300 2000 光纤/
 optical fiber
单脉冲/
 single pulse
540×440×415
