Propulsion System
TEC is committed to optimal electric system solution for high-speed transportation,suburban, and Intercity. TEC's scope of supply includes the complete engineering, manufacture and commissioning. Furthermore TEC is offering consulting, training, refurbishment and overhaul to our potential customers. In the past 5 years, TEC have designed and manufactured propulsion and control system for various speed EMUs from 160km/h to 380km/h and have delivered more than 2000 sets. TEC propulsion systems have been widely used in all series High Speed EMUs such as CRH2, CRH380A, CRH380AM, CRH380AN, CRH6A, CRH6F.

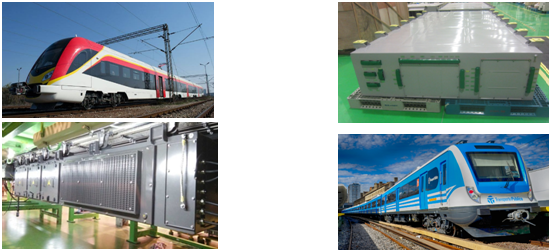

(1) Macedonia EMU / Certified by TSI
Propulsion system parameters:
Integrated traction and auxiliary converters.
No secondary filter loop for main circuit
Axle control
Articulate bogie
EMU parameters
Power: AC 25kV / 50Hz
Formation: Mc1-T-Mc2
Maximum speed: 160 km/h
|
(2) Argentina Roca Line EMU / WideGuage
Propulsion system parameters:
Integrated traction and auxiliary converter
Passing through neutral sections
Water cooling
EMU parameters
Power: AC 25kV / 50 Hz
Formation: 2M2T / 2M1T
Maximum speed: 120 km/h
|
(3) Dual Voltage EMU
Propulsion system parameters:
Integrated traction and auxiliary converters
Modular distributed TCN system
Water cooling
EMU parameters
Power: AC 25kV / 50 Hz & DC1500V
Formation: 2m2T
Maximum speed: 140 km/h
|

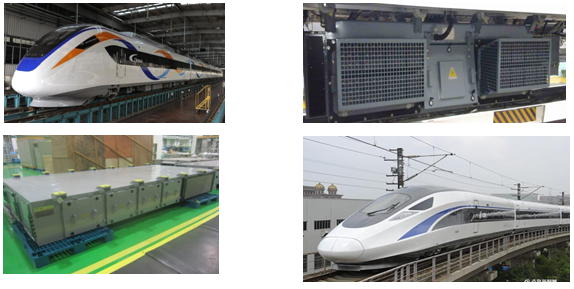

(4) Chinese Standard EMU
Propulsion system parameters:
Integrated traction converter
Auxiliary converter
Cooling system and secondary filter loop
Bogie control
EMU parameters
Power: AC25kV / 50Hz
Formation: 4M4T
Maximum speed: 350 km/h
|
