Resistors, Reactors & Radiators

We can design resistor products according to customer requirements, including diferent compacting tool set of resisstors to coin resistor, which not only ensures the strength of resistor, but also imporves cooling speed.

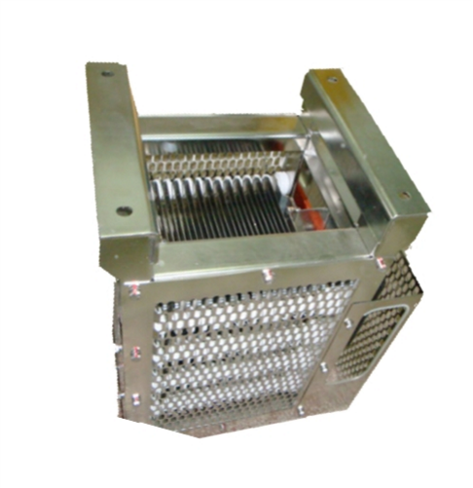

TE171  DBU (Dynamic Braking Unit)
Main function: Consume  the excessive regenerative  braking energy
Traction:  Restrain the instantaneous  overvoltage
Rated resistance :3.6 ohm
Rated voltage :1800kw*2
Rated power :DC2715V

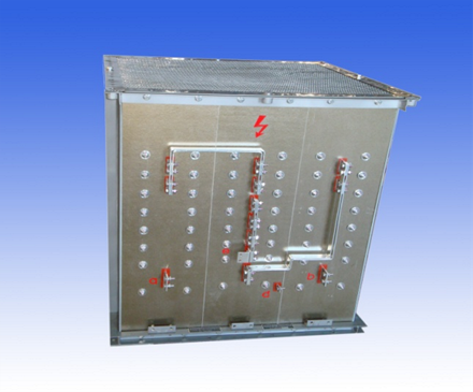

TZY1  Overvoltage absorbing Resistor
Application:Fangshan  line, BJ subway
Main function:Lower  relative  overvoltage until  to  zero
Rated  voltage(20℃):2—0.81ohm
Rated  operation  voltage:DC900V
Rated  power:2×13.5KW

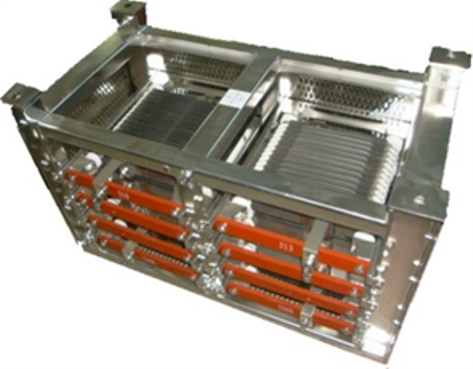

TY3 Overvoltage absorbing Resistor

Application:Changping  line, BJ subway
Main function:Lower  relative  overvoltage until  to  zero
Rated resistance value:2--0.455ohm
Rated  operation  voltage:DC1100v
Rated  power :7.78KW

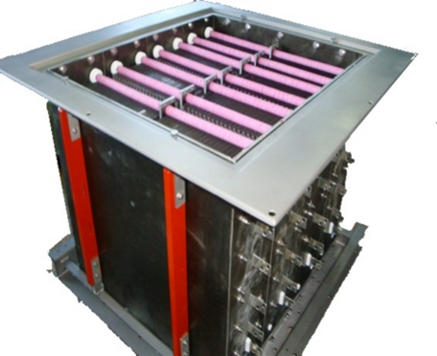

TE069  DBU

Main function: Consume  the excessive regenerative  braking energy
Traction:  Restrain the instantaneous  overvoltage
Rated resistance:4.5ohm
Rated voltage:DC2608v
Rated power:2570kw
